Project: Green Light

Update – Case model

Here are a couple of pictures of the case I wanna make. They are rough but you get the general idea.

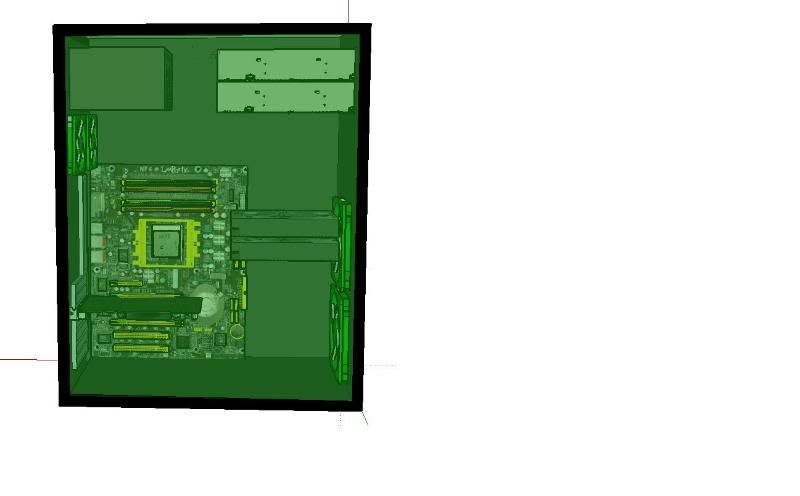

Shot of the side clear panel.

Shot of the top clear panel.

Back of the case.

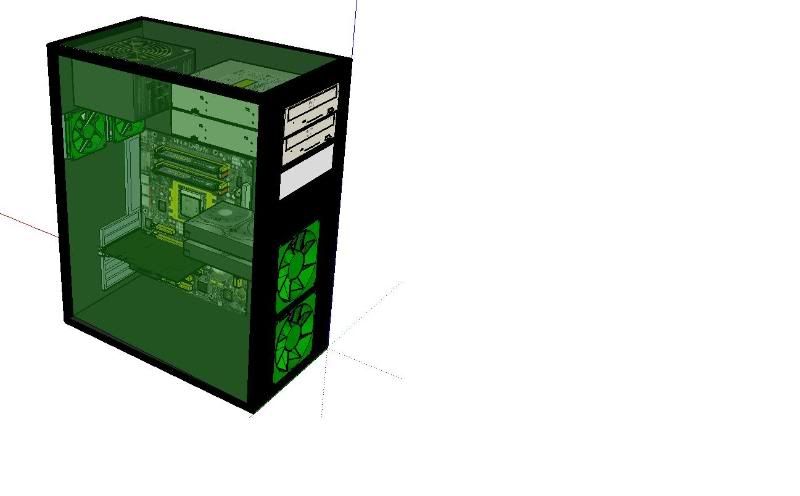

Corner shot to see both clear panels.

Front shot.

Another corner shot.

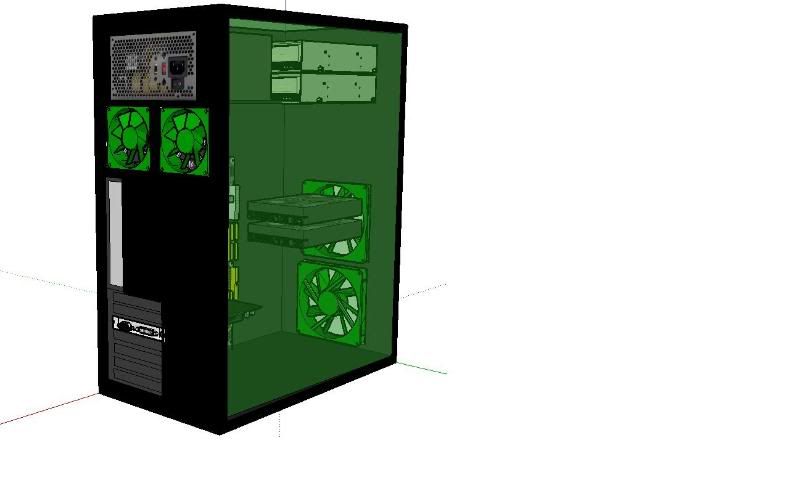

Back corner shot.

Ya, I know I suck with the program. But I feel like I'm getting better with it as I make more stuff. I'll have pics of my workplace coming soon. I just need to finish my room and the work bench in my basement.

Also I'm buying a Dremel soon. I thought the were more expensive but only $44.99 for a 65 piece Craftsman one.

Comments please :D

-Fuga

:pid love to comment on the drawings but the pics are down

Quote:

---

Originally Posted by armadilloben

:pid love to comment on the drawings but the pics are down

---

Fixed

UPDATE - PARTS

Finally got some parts:
4 x 80 mm Green LED Fans

Antec 900 Case

Extras and Screws

Inside

Uber big fan

Ordering:
4 x 120 mm Green LED Fans (Same as 80's)

Supplies

Bought:
Dremel

Cardboard (for mock CPU, GPU, RAM etc.)

Ordering:
Dremel cutting blades


More to come.

-Fuga

ooo new parts and tools, you gotta get some pictures! here is some rep to help you along the way.

UPDATE - DISASSEMBLE

Well, now the modding truly begins. Heres some pictures of me disassembling the victim case :twisted:

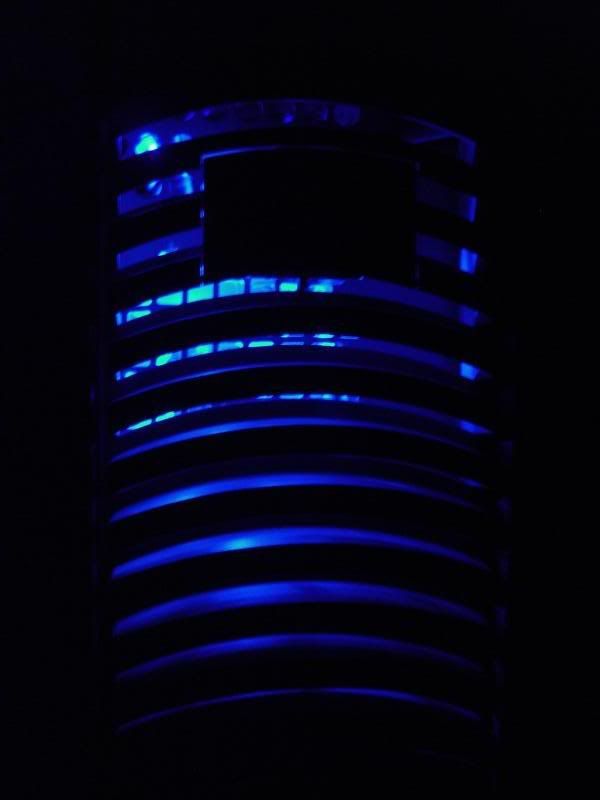

Pretty Lights :p
Side

Front

Back

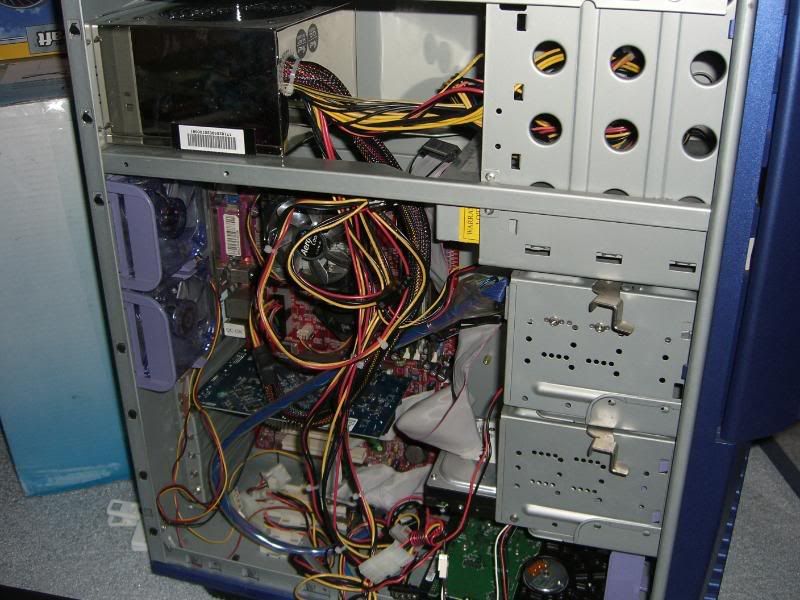

Inside

With clear side on

Down to the mobo

Old PSU

Empty shell side

Back

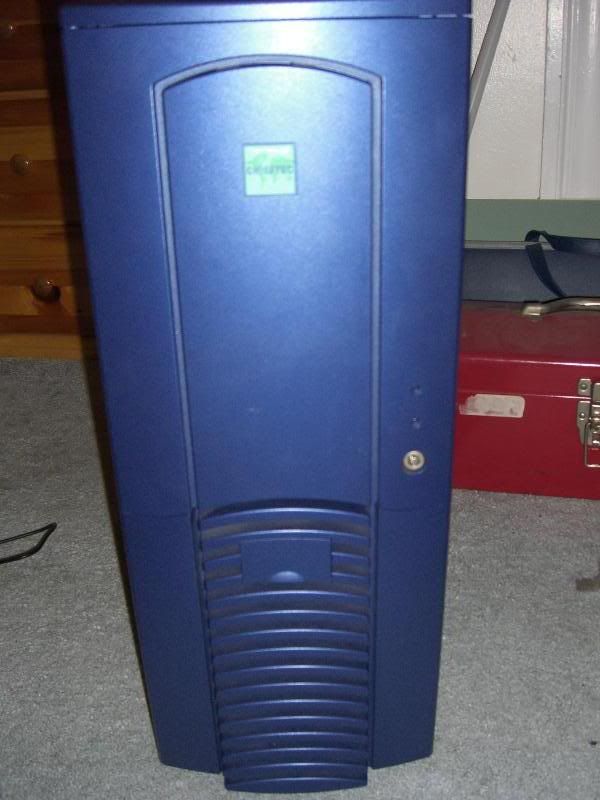

Front

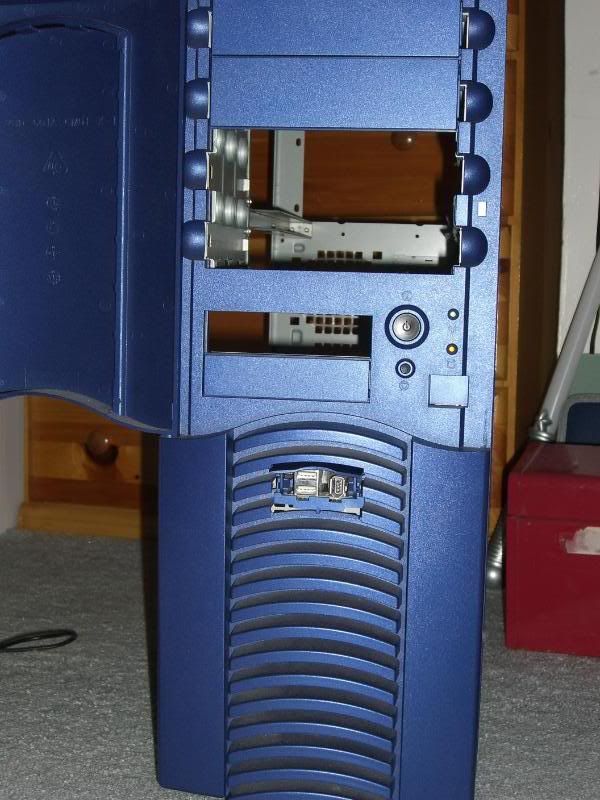

Front door open

Case fan parts

Hard drive trays

So I've gotten some done today on my like only day off. I'm going to put together the system that is going into the modded PC into the Antec 900 case with the fans and all. (When I get the 120's).

I'll be posting pictures here on out on the progress I make. Hopefully everyone likes it, because I know I do :D:D

-Fuga

are you really gonna kill that antec case:( as far as i can se you are gonna rip it completely apart:D... at least thats what it looks like in your sketches, IMO its a bit to square:/

but go for the watercooling:D always a nice thing to experiment with if you havent tryid it before! i like :p

more sketchup of the case? :)

nice case to mod.... im working on a similar one myself

Quote:

---

Originally Posted by p0Pe

are you really gonna kill that antec case:( as far as i can se you are gonna rip it completely apart:D... at least thats what it looks like in your sketches, IMO its a bit to square:/

but go for the watercooling:D always a nice thing to experiment with if you havent tryid it before! i like :p

more sketchup of the case? :)

---

NO WAY!! The Antec case is wayyyyy to cool to kill. I'm killing that blue Chief Tech one. I'm still noob at Sketchup so im trying to make it look like the one I'm going to mod. The antec is for the parts (hardware) that will eventually be going into the mod because I really want to use em :D.

Still undecided on the watercooling. I'm looking at the DD set that I posted the specs earlier.

So I will be making more Sketchup of the case I'm going to mod soon.

-Fuga

UPDATE - PARTS

So instead of getting a single 320 GB HDD for my secondary. I decided to do 2x 160 GB. Bought them from a friend for $25 each. BRANDY NEW!! :D I'm using one for all of my games and the other for music, pictures and such.

I'll post pics of the parts built into the Antec Case.


- Fuga
